Find Connectors for Your Industry

Each industry has unique requirements for performance, reliability, and environmental resistance. Here is how we serve each one.

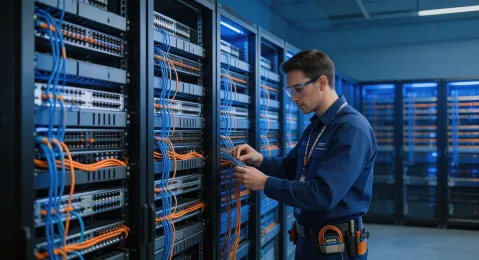

Telecom Carriers

Fiber optic connectors (LC, SC, MPO) for central office cross-connects and outside plant closures. RF connectors for base station antenna feeds. All products meet Telcordia GR-326 requirements for insertion loss (≤0.3 dB) and return loss (≥50 dB). We support carriers deploying GPON, XGS-PON, and 5G fronthaul/backhaul links.

Discuss Your Network →

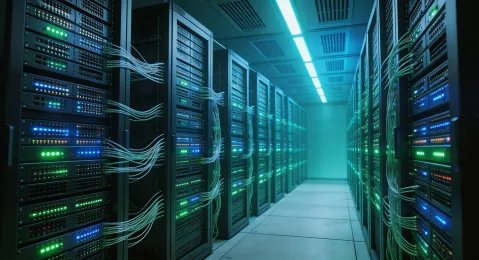

Data Centers

High-density MPO/MTP trunk cables and LC duplex patch cords for spine-leaf architectures. Our connectors support 100G, 400G, and emerging 800G interconnects with ultra-low insertion loss. Available in OM3, OM4, OM5, and single-mode variants with bend-insensitive fiber compatibility.

Plan Your Cabling →

Wireless Infrastructure

N-Type and 7/16 DIN connectors for macro cell antenna jumpers. SMA and mini-DIN connectors for small cell and DAS deployments. IP67-rated options for outdoor environments with operating temperature range from -40 to +85 degrees Celsius. Cable assemblies with integrated lightning protection.

Explore RF Solutions →

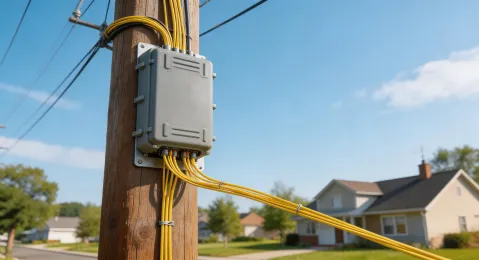

FTTH Deployment

Pre-terminated drop cables, field-installable connectors, and outdoor-rated splice closures for fiber-to-the-home networks. Our SC/APC and LC/APC connectors are optimized for PON splitter applications with angled polish to minimize back-reflection in GPON/XGS-PON architectures.

Start Your FTTH Project →

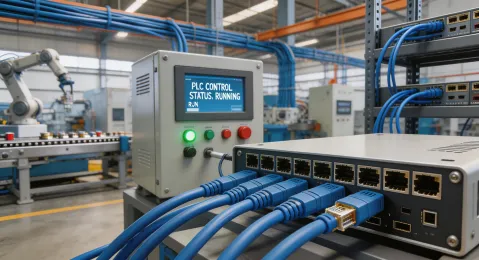

Industrial Automation

Rugged M12 and RJ45 connectors for industrial Ethernet (PROFINET, EtherNet/IP). Terminal blocks rated for -40 to +105 degrees Celsius. Vibration-resistant designs for factory floor environments with EMC shielding options meeting IEC 61000 requirements.

Find Industrial Connectors →

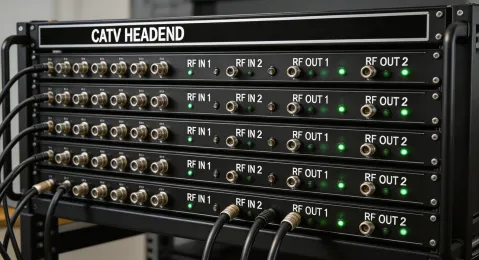

CATV & Broadcast

F-type and BNC connectors for headend equipment, coaxial distribution amplifiers, and set-top box feeds. Precision impedance matching at 75 ohms with triple-shielded cable assemblies for DOCSIS 3.1 and 4.0 infrastructure upgrades.

Discuss CATV Needs →

Application Case Studies

How specific connector choices solved real infrastructure challenges.

FTTH Network Expansion: 15,000 Subscriber Drop Points

A regional fiber operator in Southeast Asia was deploying GPON-based FTTH to 15,000 residential subscribers across three municipalities. The outside plant design called for 1:32 optical splitters with SC/APC connectors at each splitter output and distribution terminal. The total optical budget from OLT to ONT was 28 dB, leaving only 1.5 dB margin for connector losses across 6 mating points per subscriber path.

Samtec supplied SC/APC connectors with angled polish achieving 0.10 dB average insertion loss and return loss exceeding 65 dB. We pre-terminated 8,000 drop cables in-factory to eliminate field polishing variability. The operator completed phase one (5,000 subscribers) in 14 weeks, with field-measured aggregate connector loss averaging 0.52 dB across 6 connection points per path, well within the 1.5 dB budget. Phase two and three followed the same connector specification.

5G mmWave Backhaul: Urban Dense Deployment

A mobile operator in a European capital city needed RF connector assemblies for 120 mmWave small cell backhaul links operating at 26 GHz. The original design specified standard SMA connectors, but lab testing showed insertion loss exceeding 0.8 dB per connector at 26 GHz, which is above the SMA rated range of 18 GHz.

Samtec's RF engineering team recommended 2.92 mm connectors (rated to 40 GHz) with stainless steel coupling and gold-plated center contacts. The measured insertion loss dropped to 0.25 dB per connector at 26 GHz. All assemblies were tested for PIM below -155 dBc before shipment. The 120-link deployment was completed over 8 weeks with zero connector-related link failures during the 90-day acceptance period. Total connector cost was 3.2x higher than SMA, but the avoided rework from using underrated SMA connectors would have cost an estimated 8x more.

Application Boundaries & Specification Limits

Every connector technology has performance boundaries. Understanding these limits upfront prevents field failures and costly rework.

Temperature & Environmental Limits

Standard fiber and RF connectors are rated for -40 to +85 degrees Celsius. Industrial-grade variants extend to +105 degrees Celsius but at higher cost and longer lead times. Beyond these ranges, connector housing materials (PBT, zinc alloy) may deform, and epoxy-bonded ferrules can delaminate. Applications in engine compartments, foundries, or desert solar farms often require specialized high-temperature assemblies that we source or co-develop on a project basis. Standard IP67 sealing degrades after approximately 500 mating cycles in outdoor environments exposed to UV radiation and thermal cycling.

Frequency & Bandwidth Constraints

SMA connectors perform reliably up to 18 GHz but exhibit increased insertion loss above that threshold. For 24-40 GHz applications (such as 5G mmWave backhaul), 2.92 mm or 2.4 mm precision connectors are required, which carry a 3-5x cost premium over standard SMA. N-Type connectors are limited to approximately 11 GHz. Specifying a connector interface beyond its rated frequency range results in elevated VSWR, signal reflections, and potential passive intermodulation (PIM) issues that degrade link performance.

Fiber Connector Mating Cycle Limits

Standard LC and SC connectors are rated for 500-1,000 mating cycles before ferrule wear affects insertion loss. In test environments or patch panels with frequent reconfigurations, this limit can be reached within 2-3 years. MPO connectors with physical-contact ferrules are rated for 200-500 cycles. Exceeding cycle limits increases insertion loss by 0.1-0.5 dB per connector, which may push links beyond their optical budget margin.

Custom Design Lead Time & MOQ Reality

While standard connectors ship within 24 hours, custom designs with modified housings, non-standard plating, or unique cable lengths require 4-6 weeks for prototyping and an additional 2-3 weeks for production tooling validation. Custom MOQs typically start at 100 pieces to justify tooling costs. For projects requiring fewer than 100 custom connectors, we recommend evaluating whether a standard product with minor field modifications can meet the application requirements at lower cost and faster delivery.
